10 inch In-wall Android Tablet with LED Light
The YC-LE101T 10 inch In-wall Android Tablet with LED Light is a cutting-edge, ultra-thin touchscreen device designed for seamless integration into walls for smart environments like classrooms, meeting rooms, hotels, offices, and more. Offering a combination of sleek design and powerful performance, this device provides interactive control for smart home integration, meeting room management, and more.
Key Features
Fill in our contact form.
We will get in touch with you as soon as possible.
Q1: What are the physical and mounting characteristics of the YC-LE101T panel?
A1: The YC-LE101T is engineered specifically for in-wall flush-mount installation. It features an ultra-thin architectural profile that projects only 10mm from the wall surface, creating a clean, modern, and space-saving aesthetic that blends seamlessly into high-end residential, corporate, or hotel interiors. The total physical dimensions of the unit are 266.99 mm (W) x 184.99 mm (H) x 32.00 mm (D).
Q2: Is the YC-LE101T compatible with standard back boxes used globally?
A2: Yes. To ensure effortless global deployment for international project rollouts, the structural chassis of the YC-LE101T is designed to be fully compatible with both EU and US standard wall boxes. This eliminates the need for expensive custom masonry or specialized mounting brackets during field installation.
Q3: What processor and memory configurations power the YC-LE101T?
A3: The tablet is powered by the Rockchip RK3566 Quad-Core ARM Cortex-A55 processor (clocking up to 1.8GHz). This high-performance SoC provides the computing efficiency required to run resource-heavy smart home dashboards, 3D floor plan renderings, and continuous video streams smoothly. It comes standard with 2GB of RAM (optional 4GB upgrade) for advanced multi-tasking and 32GB of onboard storage for local apps, assets, and data logging.
Q4: Which operating systems and interactive touch gestures does the device support?
A4: The YC-LE101T runs on Android 11 or Android 13, offering a secure, up-to-date, and highly customizable environment that is fully compatible with modern smart automation applications. The premium 1280 × 800 capacitive touchscreen natively supports a full array of multi-touch gestures—including left/right swiping, slide up/down, and fluid pinching to zoom in/out—ensuring an intuitive user experience.
Q5: What power input and networking options are available to simplify installation?

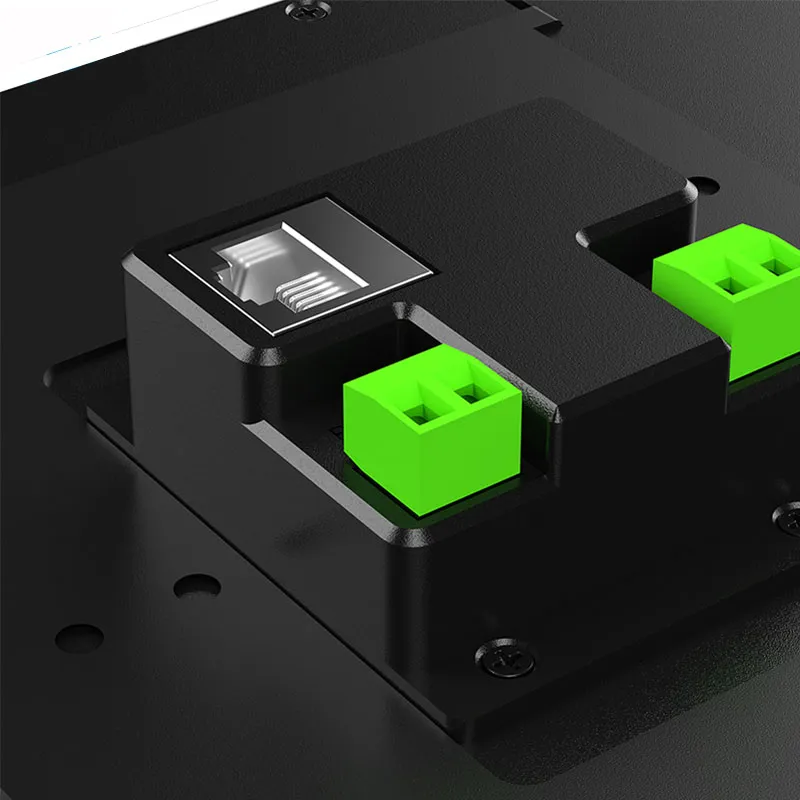

A5: The tablet features optional Power over Ethernet (PoE) support alongside standard DC 12V input. Utilizing the PoE capability via the RJ45 Ethernet port allows system integrators to run both high-speed data and low-voltage power over a single network cable. This one-cable setup drastically reduces labor costs, eliminates the need for AC junction boxes behind the wall, and enables IT teams to manage power cycling centrally. For wireless deployments, the tablet includes 2.4G Wi-Fi and Bluetooth 5.2.
Q6: Does the YC-LE101T support physical industrial automation protocols?
A6: Yes. In addition to standard TCP/IP networking, the hardware includes an RS485 serial communication interface. This dedicated port allows the tablet to interface directly with traditional industrial subsystems, legacy HVAC controllers, smart meters, and specialized fieldbus automation networks common in smart buildings.
Q7: How can developers programmatically control the edge-surrounding LED status lights?

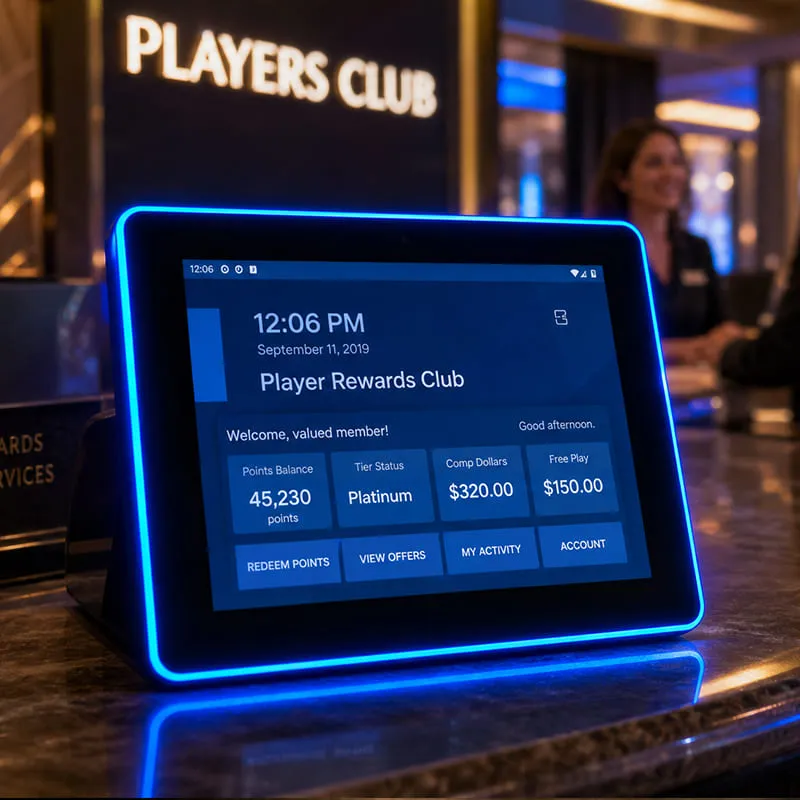

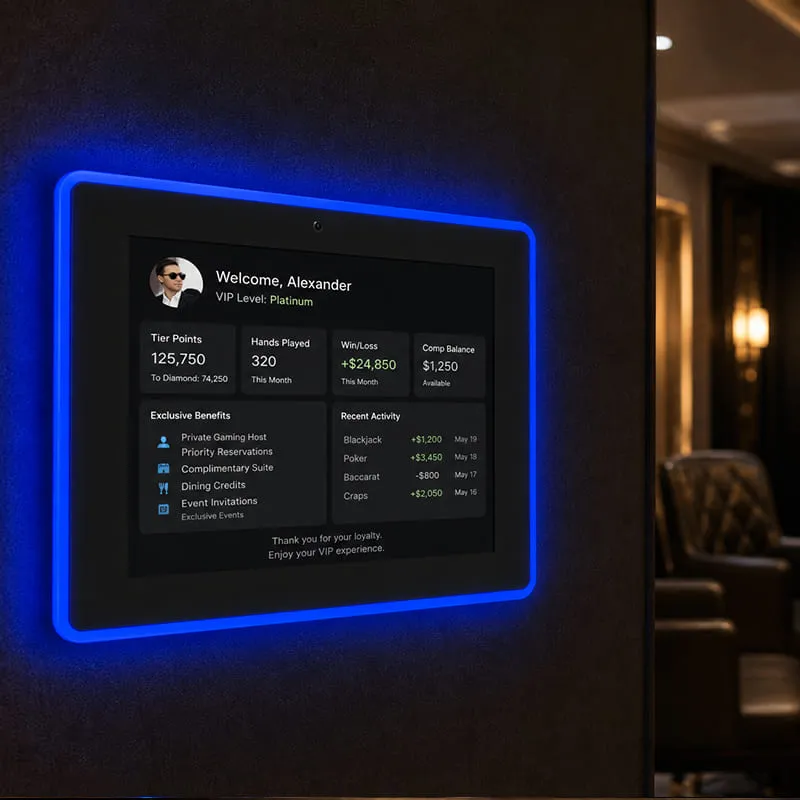

A7: The YC-LE101T features an edge-surrounding RGB LED light matrix governed by a flexible customizable API. System integrators can program the LED strip to shift colors or change states depending on real-time room conditions (e.g., glowing green for an available meeting room, red for occupied, or shifting brightness based on ambient light). If a low-profile look is required, the LED lights can be completely turned off via the software.
Q8: Can the panel be configured with secure access control hardware?
A8: Yes, the tablet can be customized with an integrated NFC module. This makes the YC-LE101T an ideal terminal for restricted corporate areas, luxury hotel suites, or smart classrooms, enabling secure keycard access, employee badge check-ins, or encrypted user authentication directly at the wall interface.
Q9: How is the YC-LE101T utilized within a Smart Home Integration ecosystem?
A9: Boasting a high-clarity 350 cd/m² display, the tablet acts as the centralized master dashboard for modern smart homes. It can unify and control multiple residential subsystems, including:
Environmental & Lighting: Controlling smart LED lighting dimmers and automated HVAC/thermostat zones.
Appliance Automation: Scheduling robot vacuums, managing smart TV integrations, and monitoring humidifiers.
Resource Tracking: Displaying real-time energy monitoring dashboards to track home water and electricity usage.
Q10: What commercial and educational applications benefit most from this in-wall tablet?
A1: Thanks to its flush design and rugged performance, the YC-LE101T excels in numerous B2B environments:
Corporate & Hospitality: Serving as interactive door displays outside meeting rooms, reception zones, and negotiation spaces to manage real-time calendar availability.
Smart Classrooms: Operating as a central hub to manage digital teaching tools, presentation schedules, and intercom systems.
Hotels: Providing guests with an in-room interactive concierge terminal for room service, lighting scene control, and climate adjustments.
