21.5 inch industrial Touch Screen

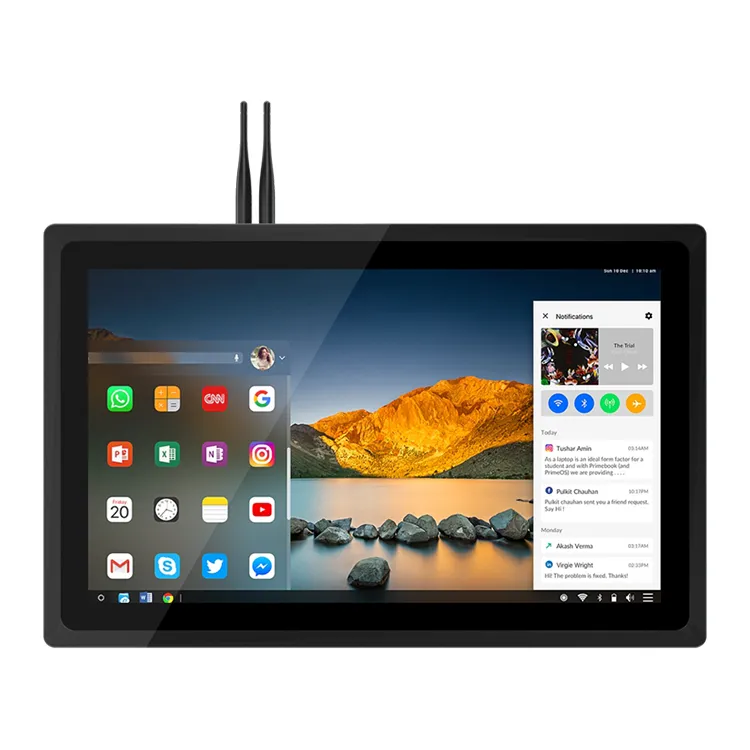

YC-215EM 21.5 inch industrial embedded touch monitor, with screen sizes ranging from 10.1 inches to 21.5 inches, this series has excellent processing power, not only can it be equipped with Intel Core J4125/i5 CPUs and Windows 10 system, but also with chips from Rockchip, such as RK3568/RK3566/RK3128, support Android or Debian system. The industrial touch panel PC is most suitable for automation, factory and retail.
Key Features
Fill in our contact form.
We will get in touch with you as soon as possible.
| System | CPU | Intel Celeron i5 / Intel Celeron J4125 / RK3128 / RK3568 / RK3566 | |
| Processor | Intel Baytrail series | ||
| Hard Disk | 128GB (256GB Option) | ||
| RAM | 4GB (8GB Option) | ||
| Operating System | Windows 10 | ||
| WiFi | Intel CPU WiFi is optional (RK WiFi 802.11a/b/g/n, BT 5.2, AC option) | ||
| Graphics Card | Intel CPU built-in graphics core | ||
| Audio | Onboard Realtek ALC662 HD audio decoder controller | ||
| Network | Onboard 1*Realtek RTL8111F Gigabit LAN | ||
| Built-in Speaker | Embedded models don't include speakers | ||
| Display | Size | 17 inch | |
| Resolution | 1280*1024 | ||
| Aspect Ratio | 4:3 | ||
| Screen Type | a-Si TFT-LCD | ||
| Grayscale Response Time | 35(TYP.) (Tr+Td) ms | ||
| Contrast Ratio | 1500:1 (Typ.) | ||
| Pixel Pitch | 0.1695 × 0.1695 | ||
| Backlight Type | WLED with LED driver | ||
| Brightness | 300 cd/m² (Typ.) | ||
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) | ||
| Display Color | 16.7M, 72% (CIE1931) | ||
| Touch | Touch Type | Capacitive touch | |
| Single Point Life | >50 million times | ||
| Touch Strength | 15-40g | ||
| Surface Hardness | 6H | ||
| Glass Type | Chemically strengthened plexiglass | ||

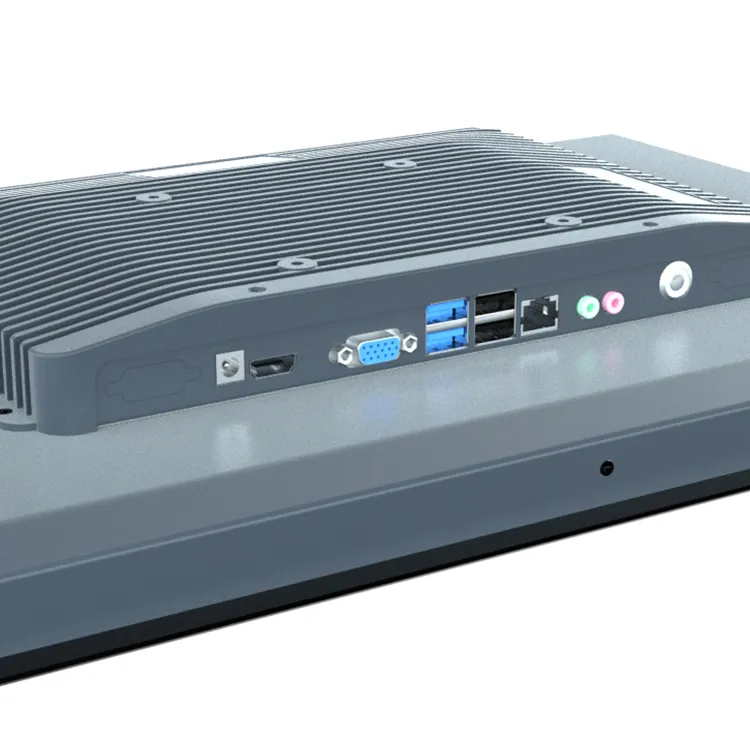

| Interface | USB | 1*USB3.0, 3*USB2.0 (5*USB2.0 expandable) | |
| Serial Port | 2*DB-9 RS-232 serial ports | ||
| Extended Display | 15-pin standard VGA female port | ||
| HDMI | Standard HDMI Type A port | ||
| Network Interface | Realtek RTL8111F Gigabit LAN | ||
| Power Connector | 12V 5A power port | ||
| Antenna | 50MM omnidirectional 2.0dBi antenna, frequency range 2400-2500MHz | ||
| Audio | 3.5mm LINE-OUT + 3.5mm MIC-IN | ||
| Environment | Operating Temperature | -10℃~60℃ | |
| Working Humidity | 20%~80% | ||
| Maximum Power Consumption | ≤48W | ||
| Working Current | ≤4A | ||
| Protection Level | Front panel IP65 waterproof and dustproof | ||
| Others | Material | Aluminum alloy | |
| Color | Black | ||
| Warranty | 1 year | ||
| Packing List | All in one tablet PC, power cable, adapter, warranty card, buckle accessories | ||
Q1: What structural engineering features allow the YC-215EM to maintain 24/7 continuous operation in severe conditions?

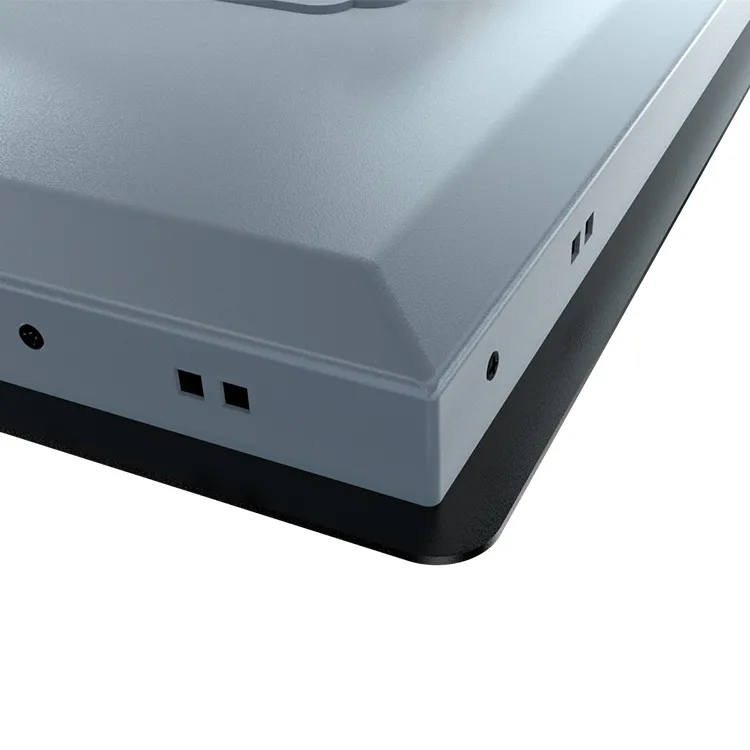

A1: The YC-215EM is engineered from the ground up for zero-downtime, round-the-clock industrial workloads. It is built with a highly durable, shockproof, and impact-resistant chassis that easily endures the heavy physical vibration and mechanical strain common to manufacturing floors and transportation hubs. The external frame is fabricated from a premium, sturdy aluminum alloy shell that drastically reinforces structural integrity while naturally absorbing physical shock.
Q2: What is the environmental protection rating of the display, and how does it prevent overheating?
A2: The system features an IP65-rated front panel, ensuring the front screen is completely dust-proof and waterproof against liquid splashes, moisture ingress, and airborne fine particles. For thermal management, the YC-215EM utilizes its all-aluminum alloy construction as a high-efficiency passive heat sink. This fanless thermal design naturally dissipates heat, eliminating vulnerable mechanical moving parts and allowing the PC to maintain thermal stability during high-temperature operations without drawing in factory grime.
Q3: What processor and memory scalability options are available for the YC-215EM platform?
A3: To accommodate varying project scales and computational workloads, the YC-215EM is built on a highly reliable x86 architecture offering two distinct processor configurations:
Intel Ivy Bridge i5-3317U: Engineered for powerful, energy-efficient multitasking and complex data processing.
Intel Celeron J4125: A cost-effective, high-reliability processor optimized for standardized automated control.
The platform comes equipped with a standard 4GB of RAM (upgradable to 8GB via an onboard 204-pin DDR3 SO-DIMM memory slot) and 128GB of industrial-grade ROM with further expandable options.
Q4: Which operating systems are supported by the YC-215EM, and can the system be customized?
A4: The YC-215EM comes pre-installed with a stable version of Windows 10, providing immediate compatibility with standard enterprise database frameworks, supervisory software, and HMI applications. For engineering teams operating on alternative infrastructures, Portworld provides complete custom OS support (such as Linux or Ubuntu) alongside flexible I/O interface expansions to adapt the physical layout to proprietary sensor arrays or legacy equipment.
Q5: What are the visual and tactile specifications of the 21.5-inch display assembly?
A5: The system integrates a spacious 21.5-inch Industrial A-Grade display panel, delivering exceptional visual clarity, sharp color accuracy, and high brightness for demanding data monitoring, process control, and diagnostic graphics. The interaction layer features a highly responsive 10-point capacitive touchscreen supporting advanced multi-touch gestures (zooming, swiping, sliding). It utilizes a one-time calibration routine that guarantees highly precise touch responses with zero signal drift or unexpected disconnection.
Q6: What hardware branding and custom ODM engineering support does Portworld provide?
A6: Backed by extensive R&D experience in embedded systems, Portworld offers comprehensive OEM/ODM customization for the YC-215EM series. We can modify the physical appearance options, housing colors, and enclosure footprints to match your exact spatial or machinery integration needs. Furthermore, Portworld provides open engineering support, including tailored software resource integration, BIOS/bootloader locking, and export-compliant protective packaging.
Q7: In which industrial sectors is the YC-215EM All-in-One PC most effectively deployed?
A7: Driven by its spacious 21.5" visual canvas, rugged sealing, and stable x86 processing core, the YC-215EM is an ideal turnkey computing node for several major B2B sectors:

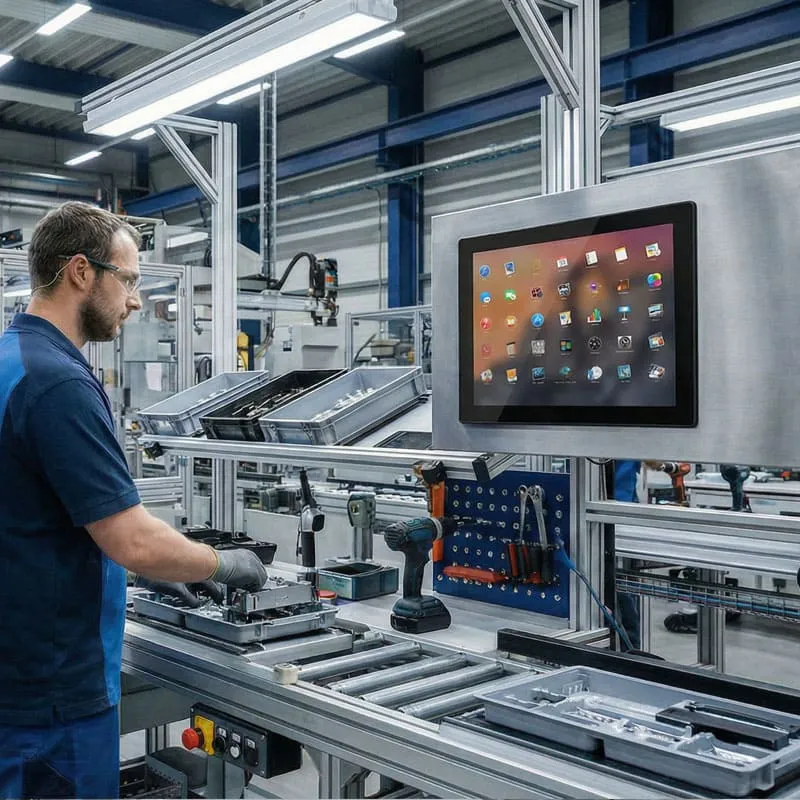

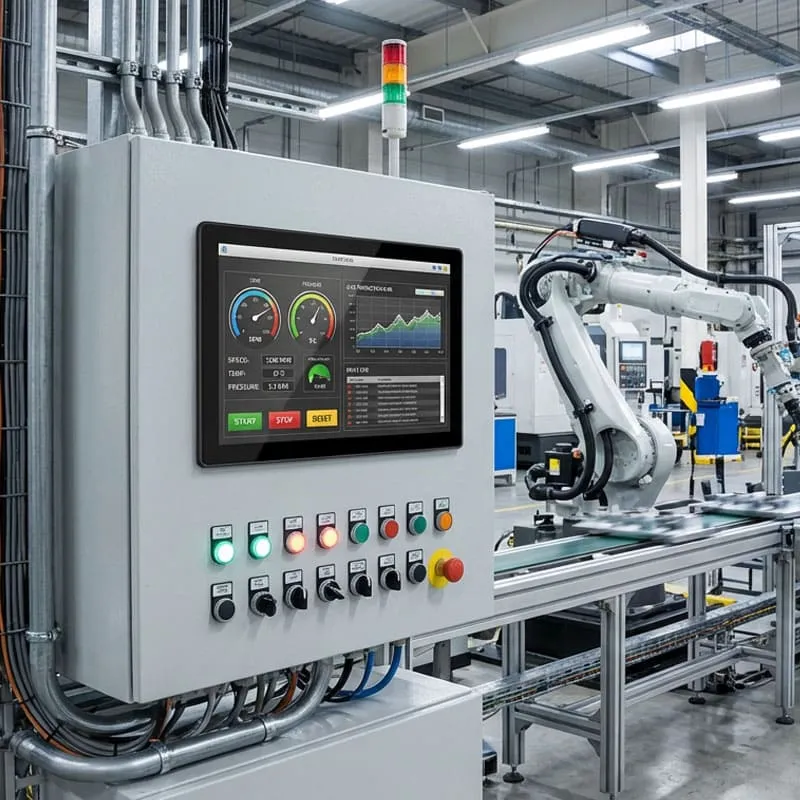

Manufacturing Automation & Machine Control: Acting as a heavy-duty HMI terminal directly linked to production lines, process control desks, and heavy industrial machinery.

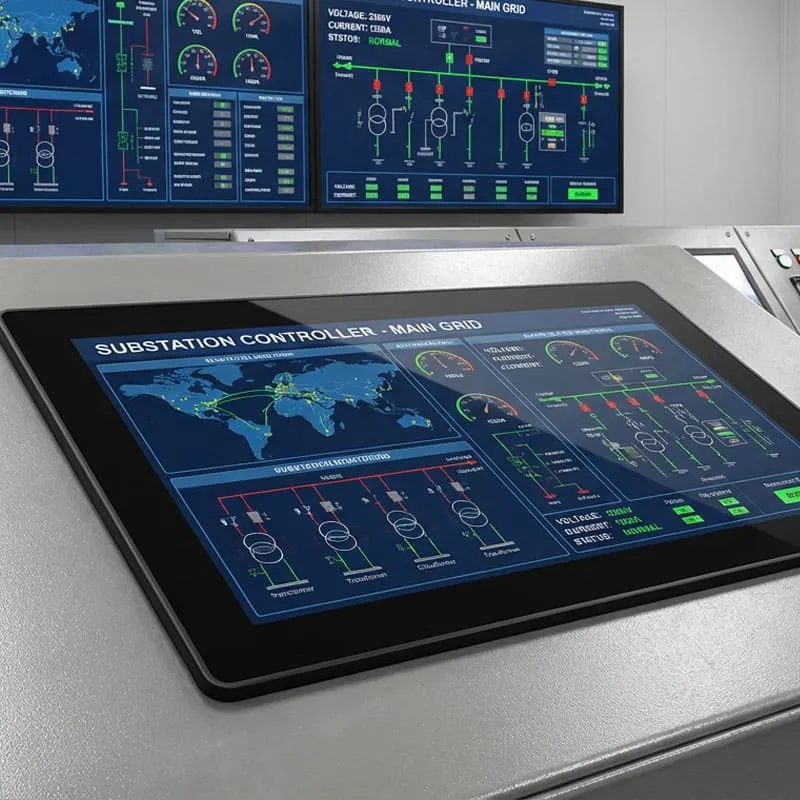

Industrial Monitoring & Diagnostics: Serving as a high-clarity factory floor visualization center for tracking real-time sensor loops and plant telemetry.
Logistics & Telematics: Driving high-throughput warehouse control stations, automated inventory sorting hubs, and heavy-duty transportation management systems.
